Formlabs Form Auto

Add Item to Favorites
Hardware extension for automation of Form 3+/3B+
Item No.
40351040 (40351040)
Hersteller Art.-Nr.
FA-F3-01
4.044,81 €
Price incl. 19% VAT plus Shipping

Delivery on demand

Usually ships in 1 to 3 days
Product description

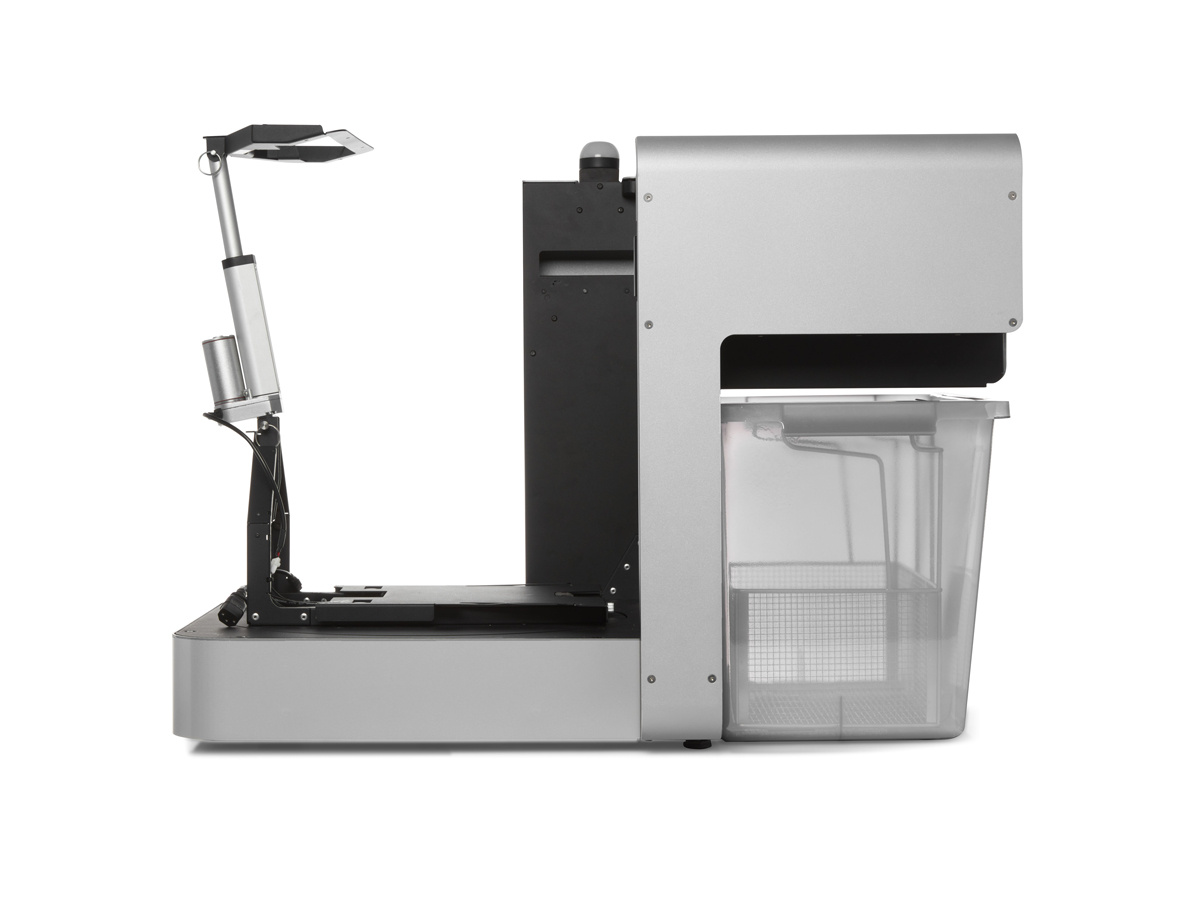

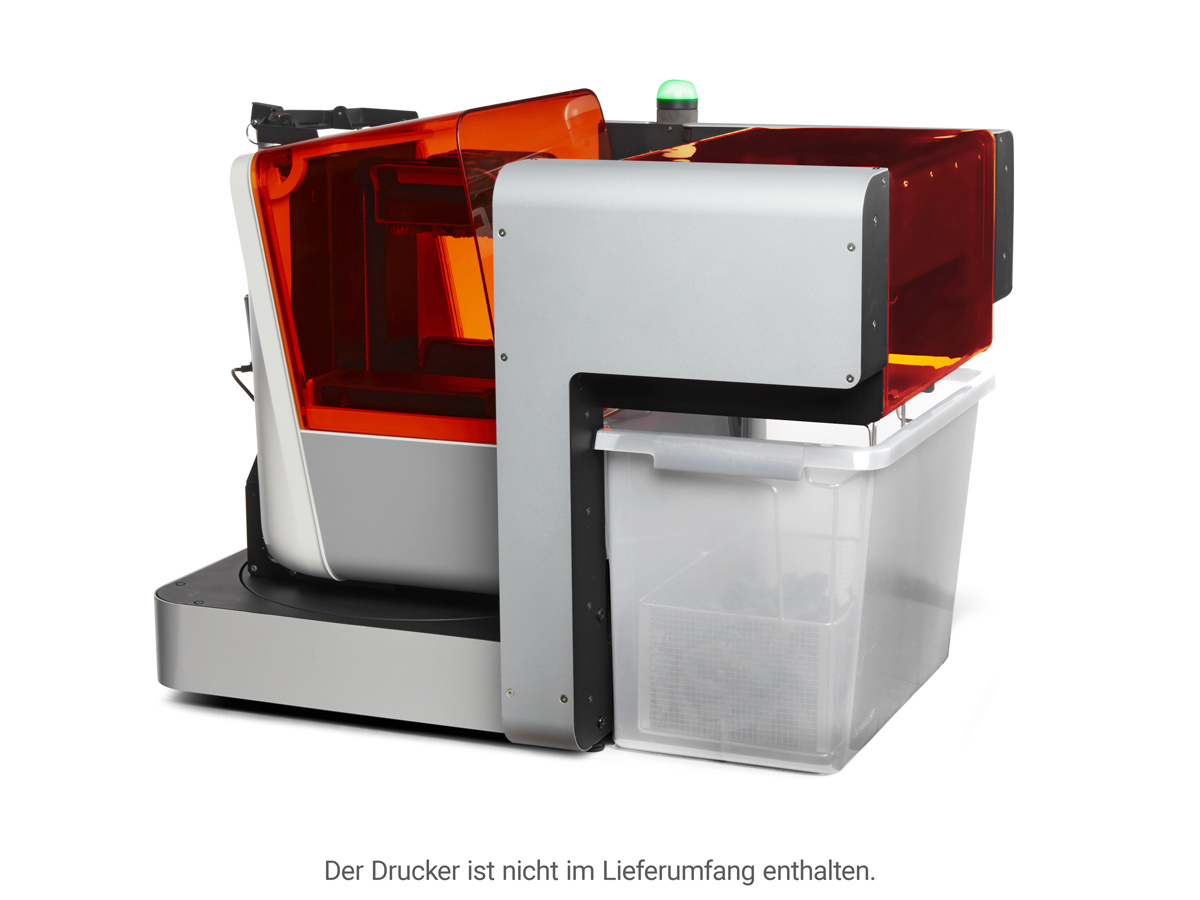

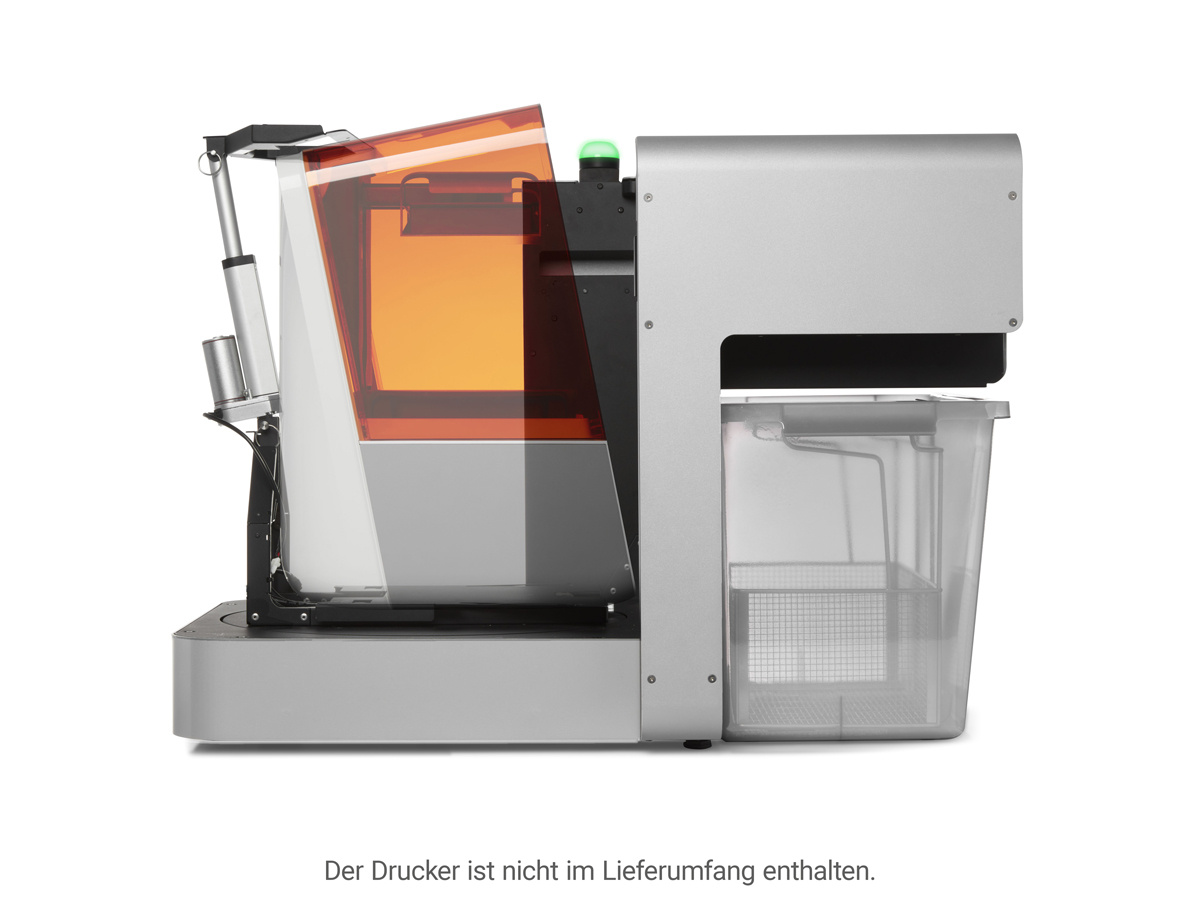

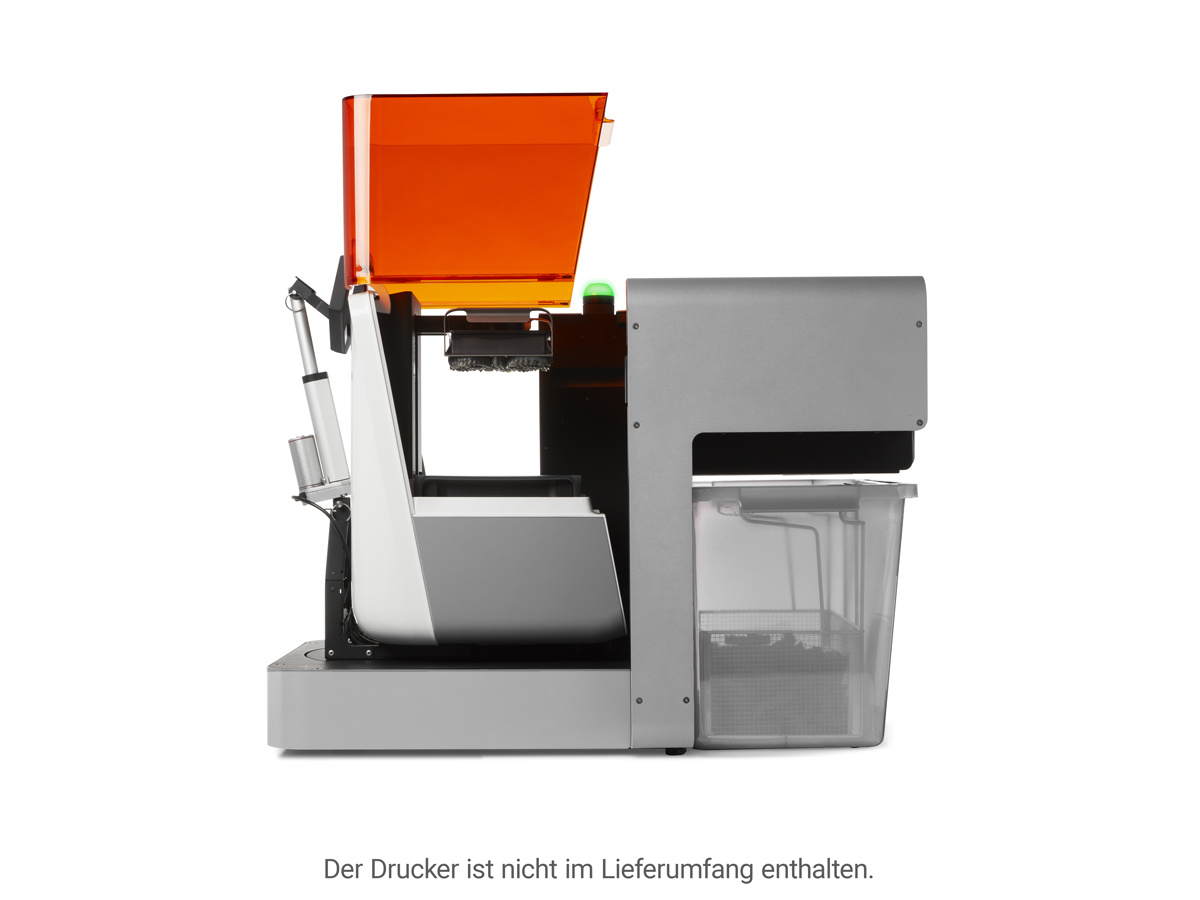

The Form Auto is a hardware extension for Form 3+ and Form 3B+ series 3D printers. It automatically removes finished parts from the Build Platform 2 and starts the next print without any manual intervention, allowing 24/7 3D printing without downtime.


The Formlabs automated ecosystem
The Form Auto can be used as part of Formlabs' automated ecosystem. This sets new standards of productivity with an automated 3D printer fleet that maximises throughput through uninterrupted production while minimising labour and costs. Increasing the capacity to produce high-quality, affordable dental models in the shortest possible time and without manual intervention pushes the previous boundaries of using Formlabs printers in the lab.

Thanks to automation of queuing, printing and part removal, production does not have to come to a halt when staff are not on site. Printers are kept running continuously and unattended over the weekend, delivering high-quality dental applications on time with shorter turnaround times. The user-friendly automated ecosystem consists of Form Auto, Fleet Control and the High Volume Resin System.

  • Fleet Control

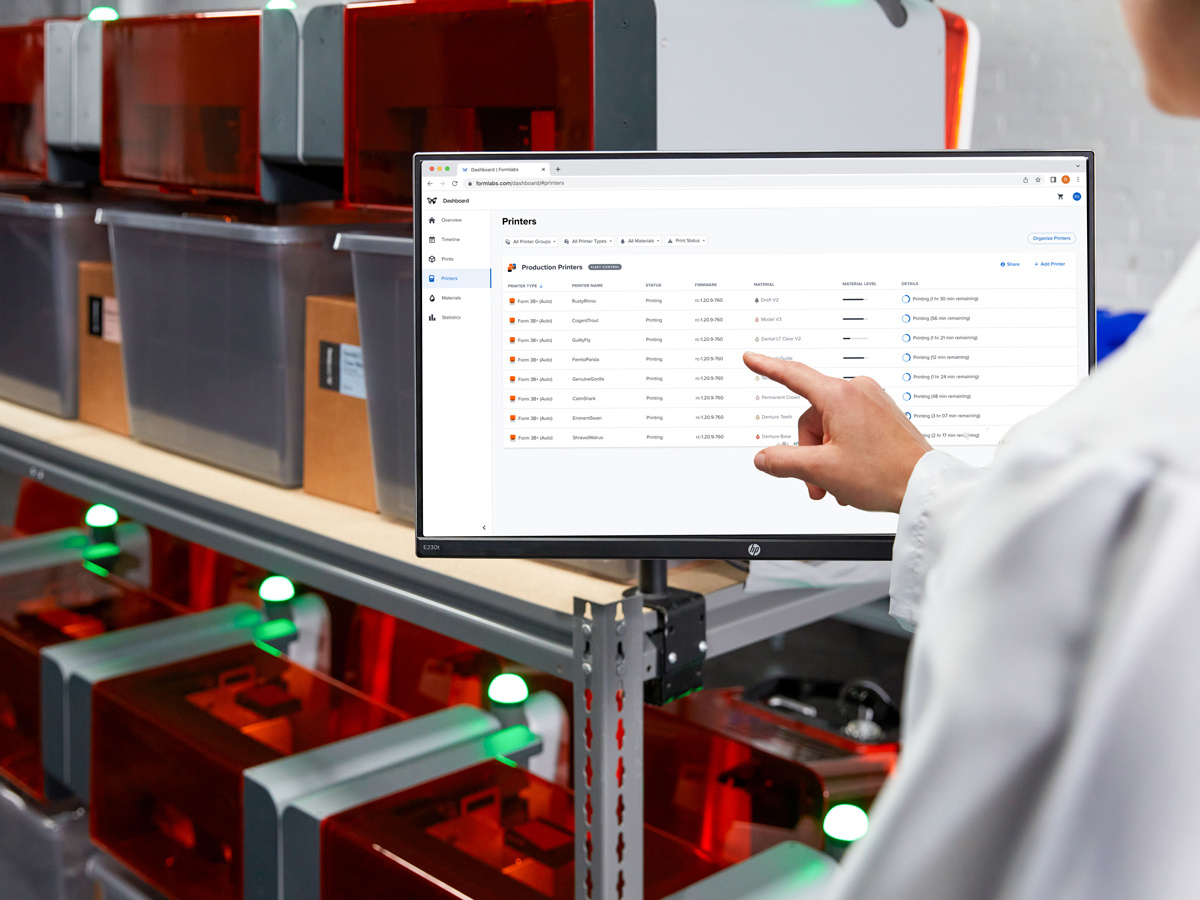

    Fleet Control (Part No. 40351040) activates new advanced features in the Dashboard and PreForm software solutions, such as centralised queue management and automatic printer assignment, that improve printer fleet management through workflow automation and optimisation.
  • High Volume Resin System

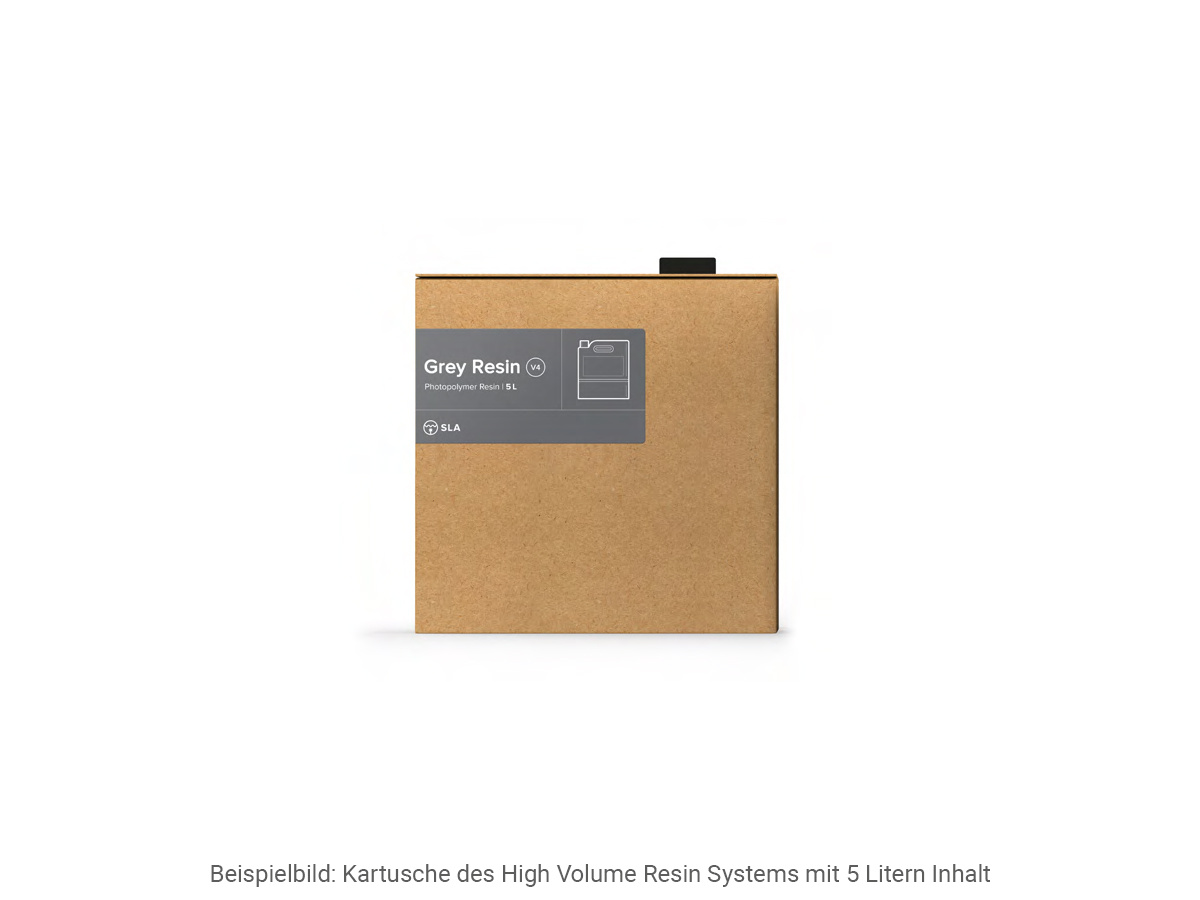

    The High Volume Resin System supplies Form 3 printers with 5 litres of resin via a pump system, so that 5 times the capacity of a standard cartridge can be printed continuously.

Advantages
  • Labour savings up to 80 %
  • Reduce unit costs by 40 %
  • increase producitivity by a factor of 3
  • Reduce packaging waste by 96 % *
  • 5-fold resin capacity

These values depend on print geometry, material, layout and orientation of the parts.
* The mentioned value is not final and can change.
Technical data
Technology
Mechanical operation of Build Platform 2

Dimensions Form Auto with Form 3+ (W x D x H)
  • with printer cover opened: 60.96 cm x 91.44 cm x 68.58 cm
  • wither printer cover closed: 60.96 cm x 91.44 cm x 68.58 cm

Weight (single)
  • 32.65 kg (without printer)
  • 50.12 kg (with printer)

Mains connection
100–240 V, 50/60 Hz, 2,5 A

printer compatibility
Form 3+, Form 3B+, Form 3B, Form 3

print management
Dahboard/Fleet Control (optional) *


NOTE: The Form Auto cannot remove parts made of elastomeric resins such as Flexible 80A Resin and Elastic 50A Resin. The Form Auto is not compatible with polyurethane resins.

* The Form Auto can be used without Dashboard and Fleet Control via the Local Mode setting for operation without an internet connection.
Scope of delivery
  • Form Auto parts Bin

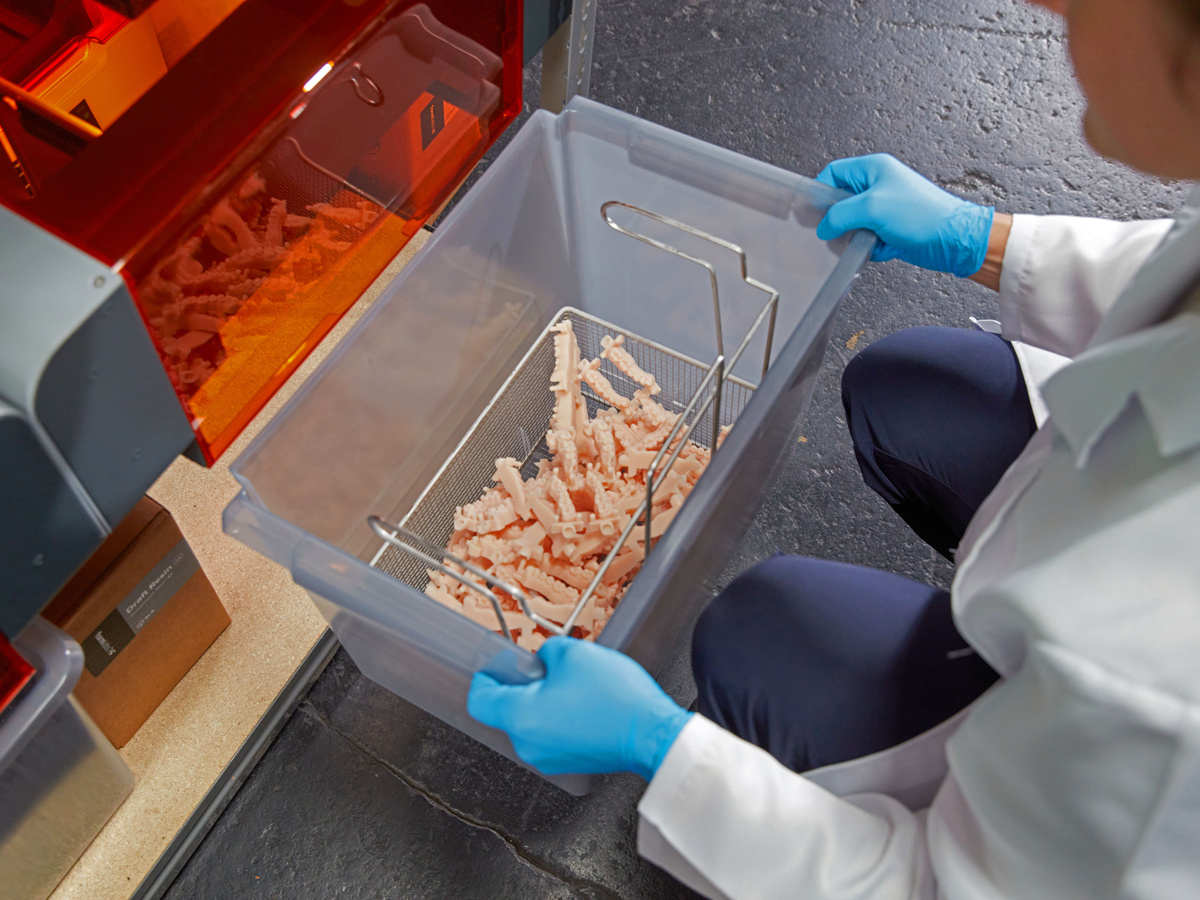

  • Form Auto wash basket (compatible with Form Wash L)
  • Adapter plate for printer base
  • Form Auto parts removal case (3 pieces)
  • Fixing elements and tool box
    • Screws for part removal gantry (4×, M8 × 1,25, 12 mm) with washers (4×)
    • Thumb screws for removal housing (5×)
    • Screws for cover bracket (4×, M3 x 0.5, 18 mm)
    • 2.5 mm hexagon spanner, 2.5 mm
    • Sexagon screwdriver, 3 mm
    • Socket spanner, 5 mm
  • Form Auto printer cover bracket
  • Form Auto levelling disc (compatible with the Form 3L/Form 3BL)
  • Printer cover brace (carton, 2 pieces) and cartridge shaft cover (carton)
Artikelmerkmale
Manufacturer
Formlabs
Product type
Automation
