Product description

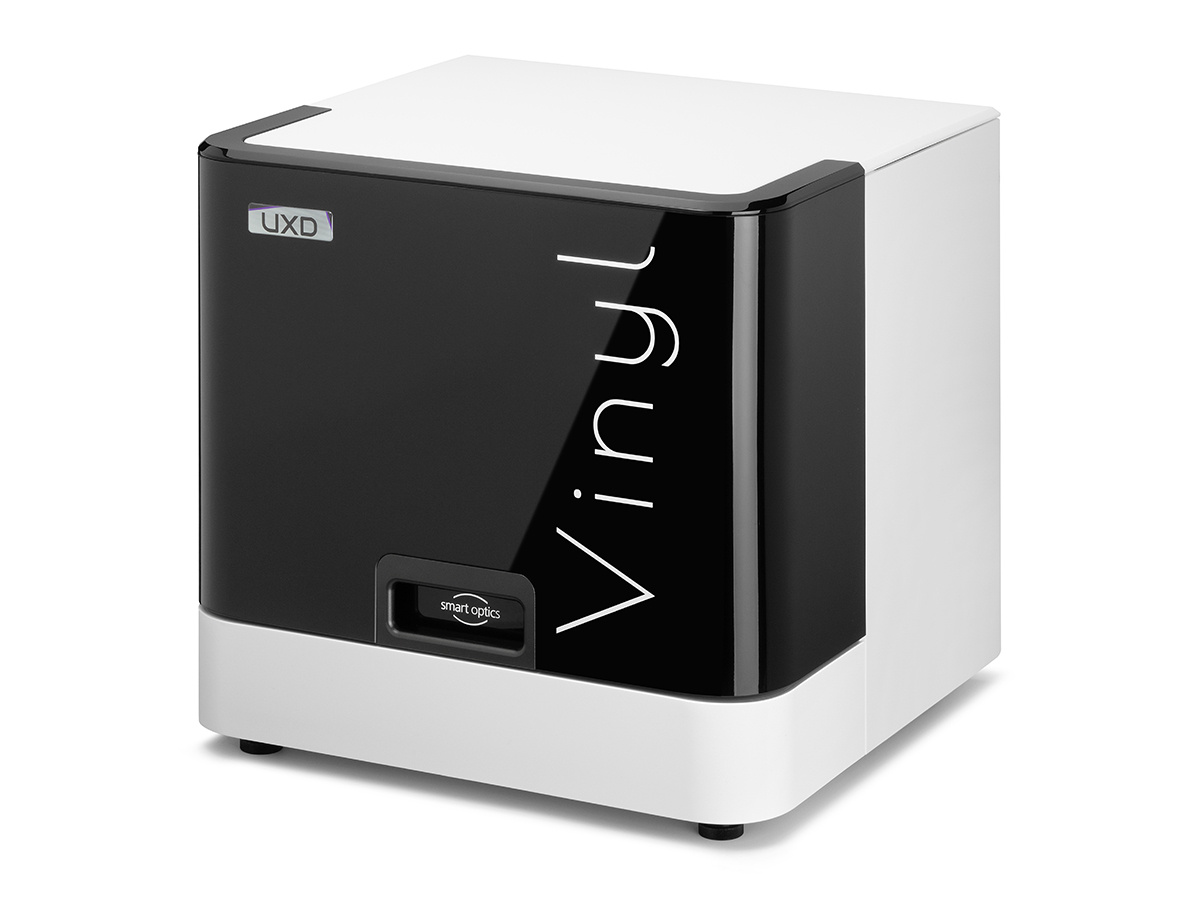

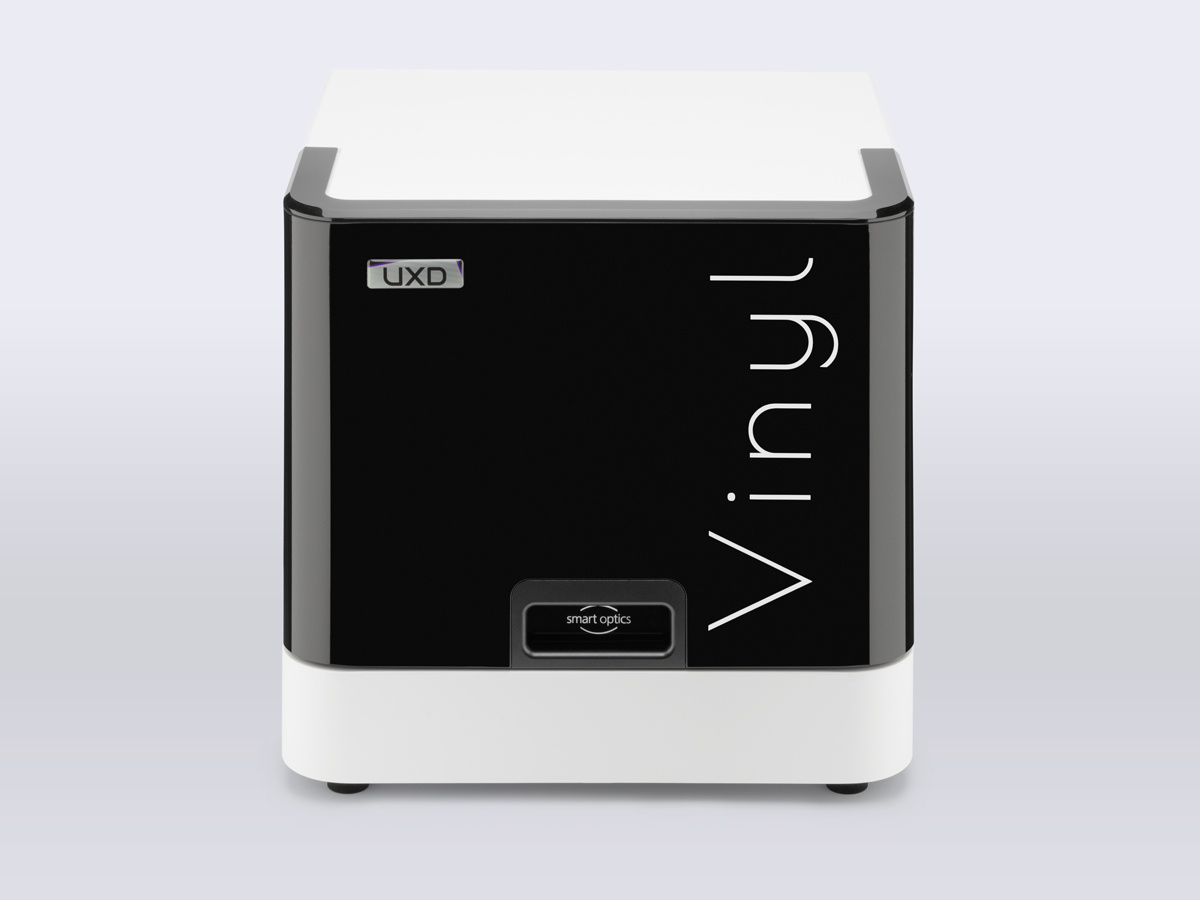

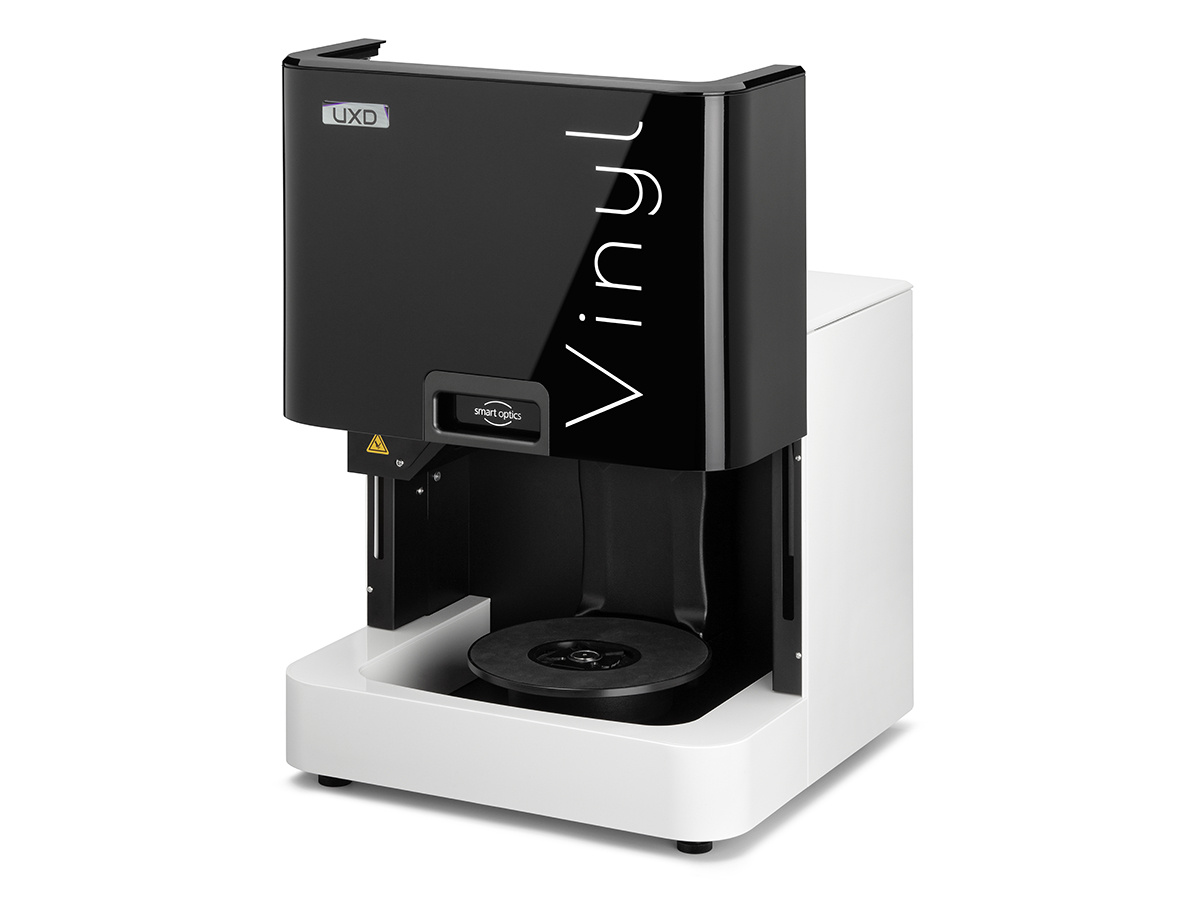

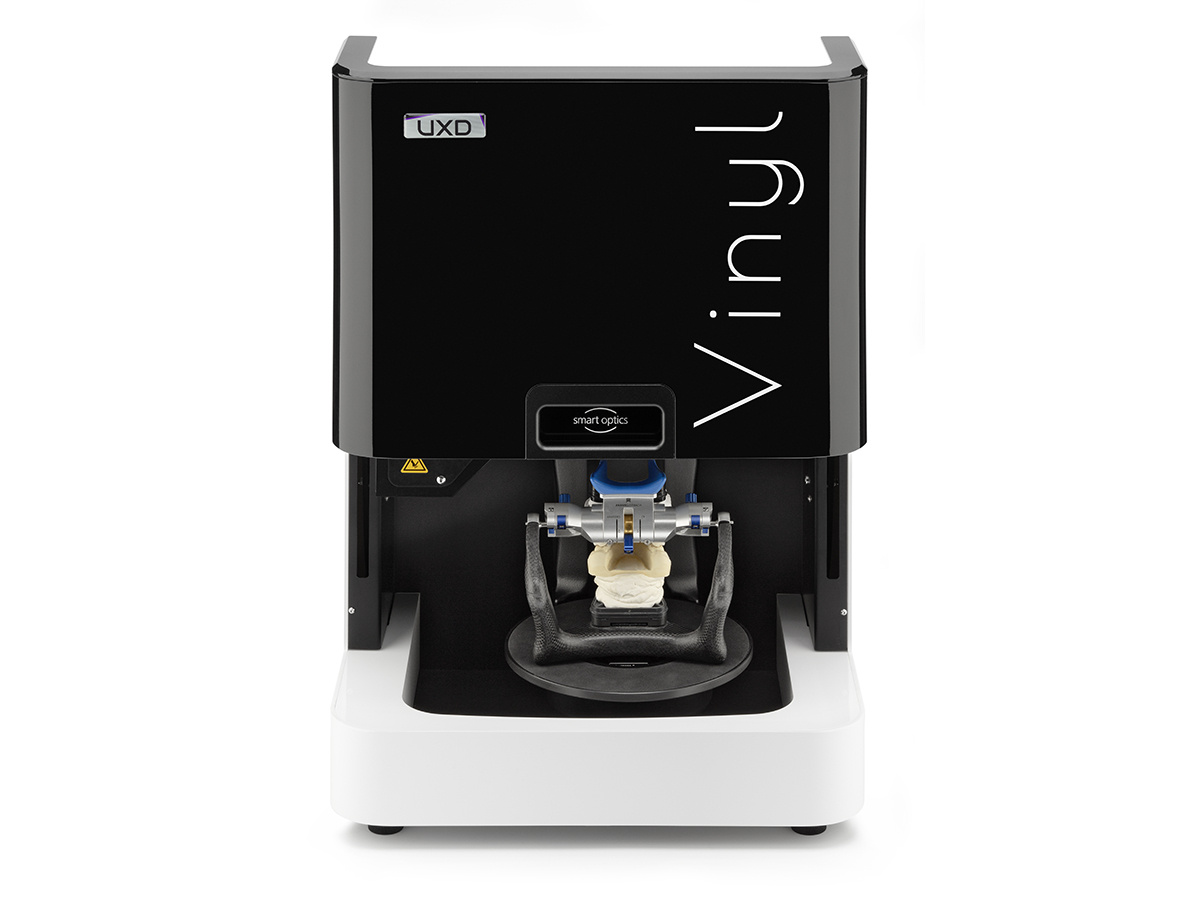

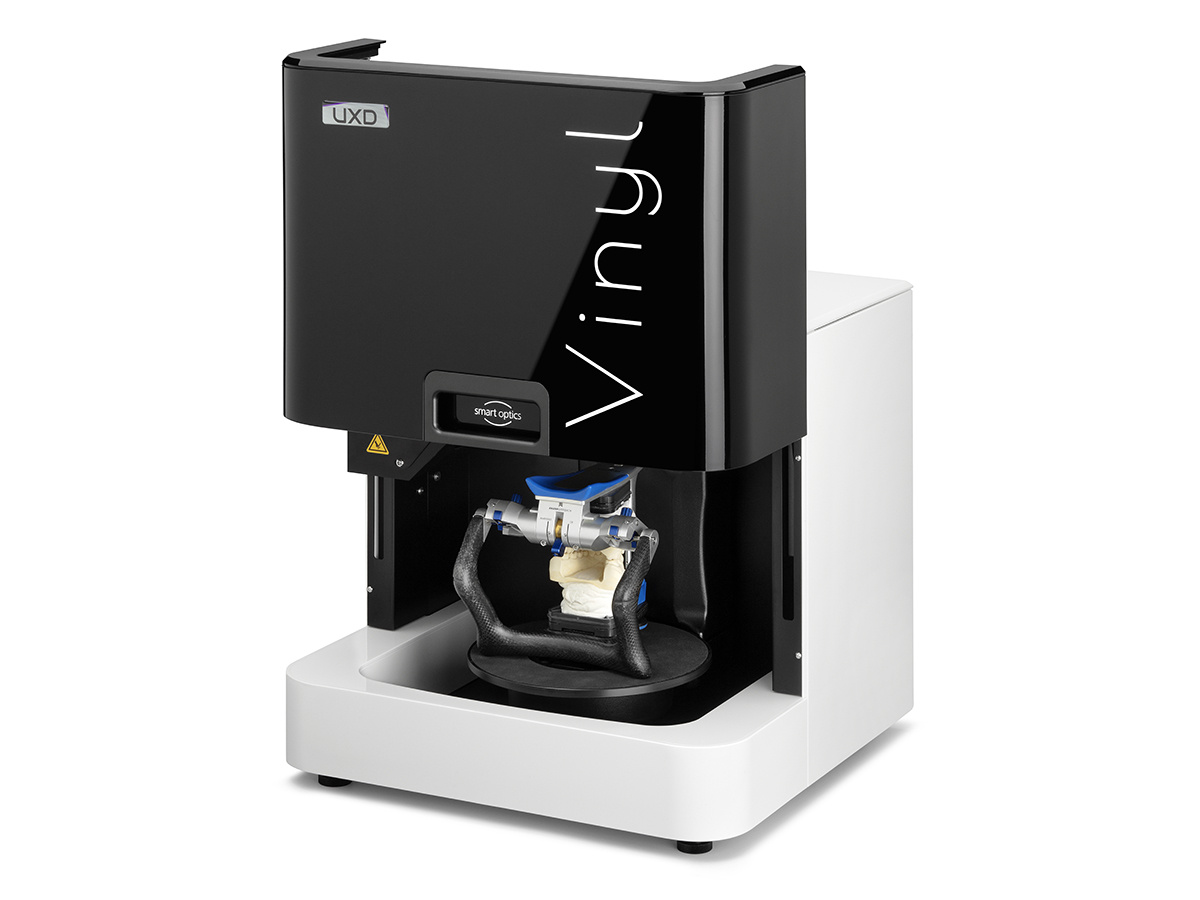

Vinyl UXD is a 3D scanner for the digitization of dentition models. It convince with precision, speed, longevity and a huge range of functions. The combination of high-quality hardware and the clear and user-friendly dental scan 3 user software enables perfect digital preparation for further processing in a CAD system such as exocad® DentalCAD.Two high-resolution cameras and an advanced 3D sensor contribute to optimal data acquisition. The user has the option to choose between four modes, which allows the number of cameras as well as their resolution to be defined. This offers the great advantage of creating a high-resolution data set with full scan coverage or a reduced data set to save time, depending on what is required.

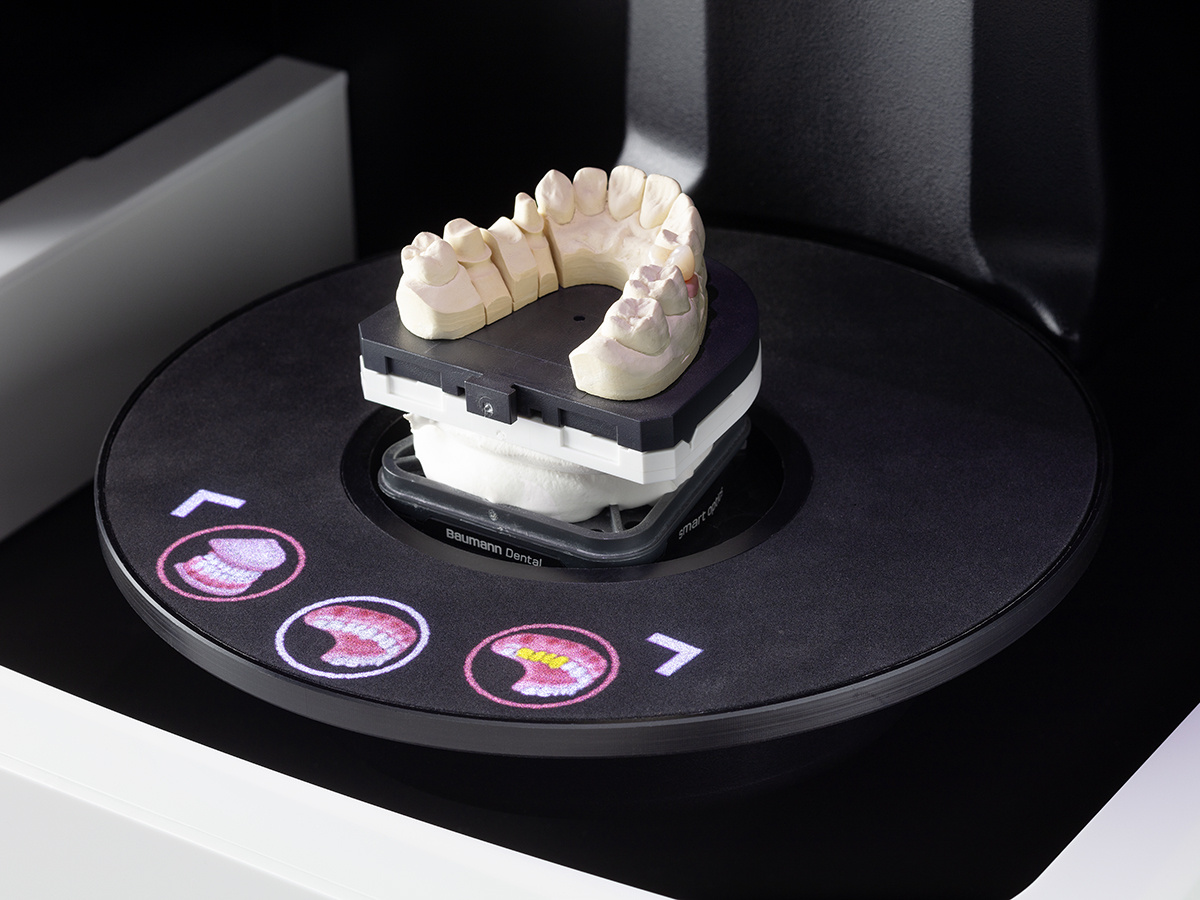

The UX module, consisting of two additional cameras and a projector, provides a new level of user experience. To select a workflow element or to start the scan, icons are projected onto the system plate and can be activated by hand gestures, almost autonomously from the PC.
The user can freely determine the scanning sequence as accustomed: upper jaw, lower jaw, articulator or other objects can be inserted depending on the selection. By monitoring the interior space, the Vinyl UXD employs AI-controlled Z-axis positioning to automatically align objects in height, thus guaranteeing the best possible scanning results.
Assistence directly at the scan object: the UX-module

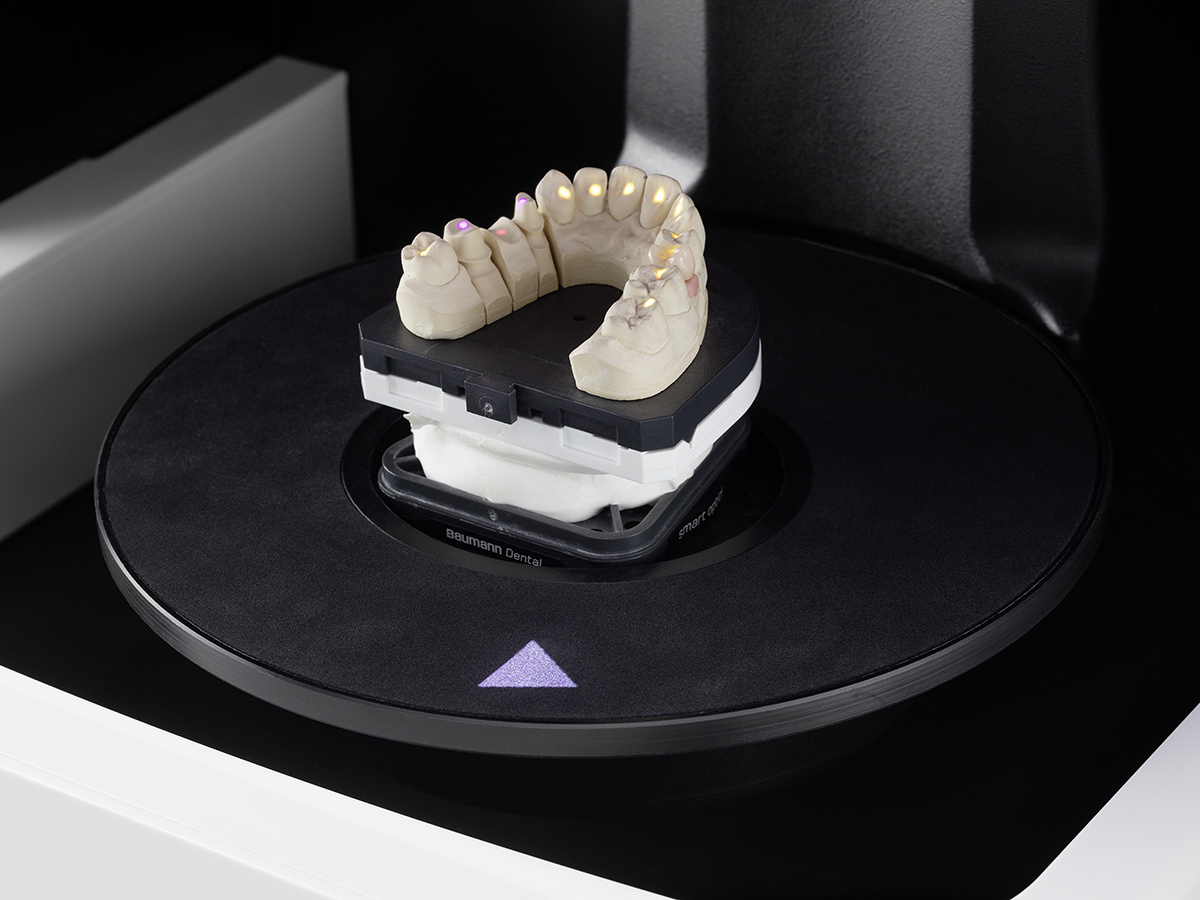

Stumps to be exposed with secondDie and singleDie, are illuminated by the projector on the model inside the device. The model and object holder can therefore remain in the scanner, eliminating the timeconsuming process of checking which teeth need to be removed. In the 2D scan, the illuminations display the correct color indication of the reconstruction types from exocad DentalCAD®.

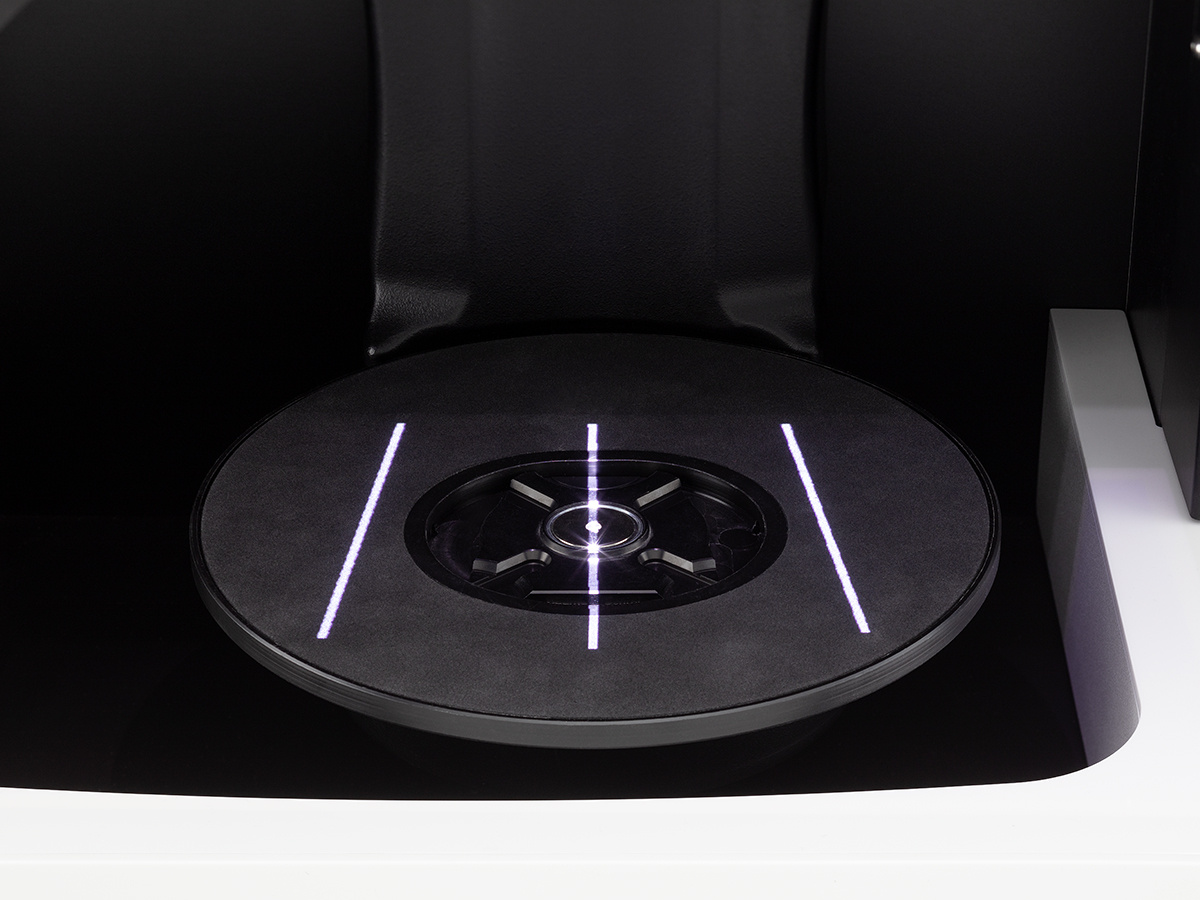

For other work processes, assistances are also projected onto the system or universal plate. The incorrect insertion of articulators or impressions can thus be ruled out.
All these features enormously facilitate work, as potential sources of mistakes are minimized.
Features
- State-of-the-art 3D sensor unit
- UX module for gesture control and assistant projections
- Enlarged articulator system plate
- AI-controlled Z-axis
- Rapid motor control
- Housing made of high-quality materials
- HR and LR mode
- Selective camera mode

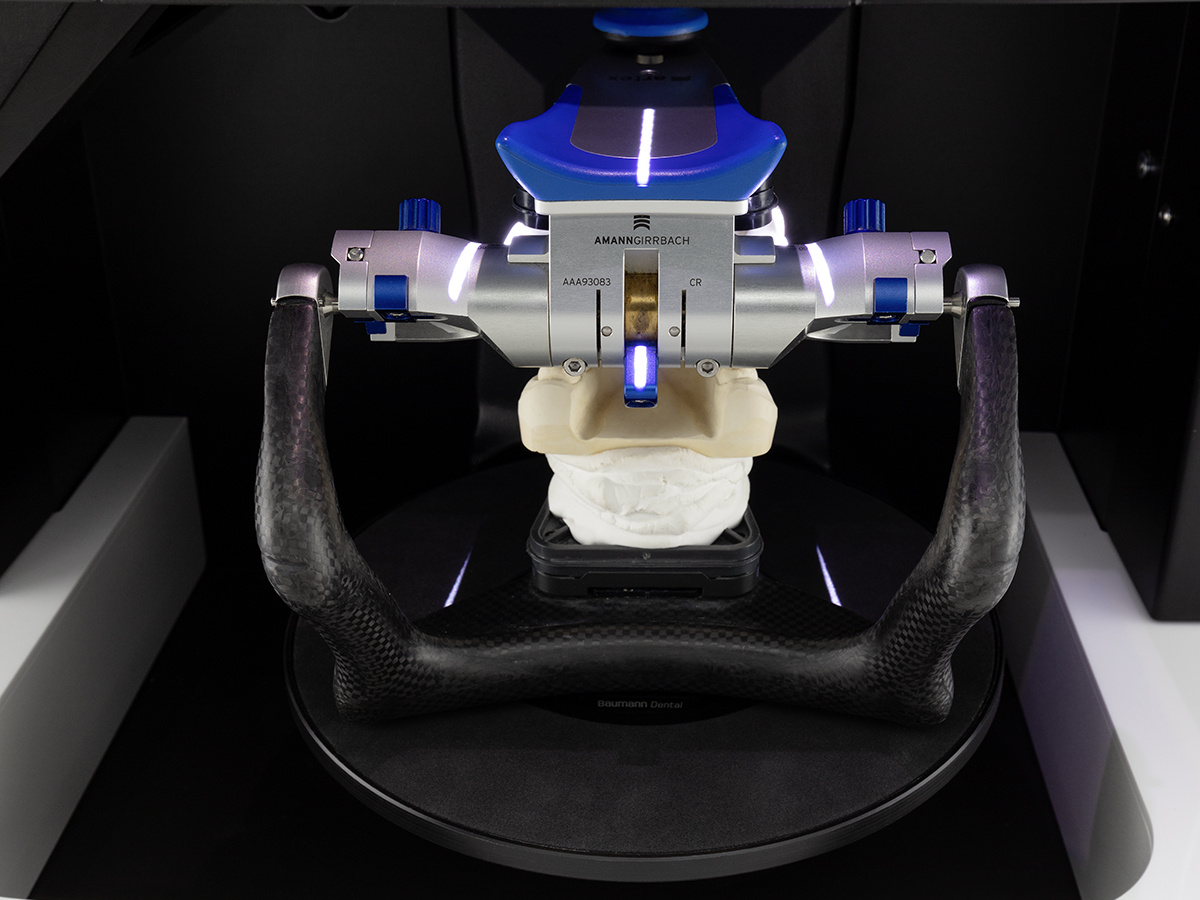

- Articulator scan
- Autoarticulation
- Twin Tray model scan
- Impression scan
- Triple Tray® impression scan
- Baltic Denture System®
- secondDie
- multiDie/multiDie+
- Visual Z-axis control
- Automatic cutting plane
- Additional scan
- Correction scan
- Texture scan monochrome
- Texture scan color
- Universal project
- multiCase project
- Orthodontic project
- Screen design: Dark Mode or Light Mode
The Vinyl series received the Red Dot Design Award in 2018.
For information on other scanners and other CAD/CAM products, please see our CAD/CAM brochure in the download area.
Technical data
- Cameras: 4
- Camera pixels: 2× 3,2 MP, 2× 1,0 MP
- Projectors: 3
- Accuracy (acc. ISO 12836): 4 μm
- Light source: blue-light LED
- Measurement: Stripe light triangulation
- Measuring field (X × Y × Z): Camera 1 80 × 60 × 82 mm, Camera 2 88 × 63 × 82 mm
- Size (W × H × D): ca. 455 × 430 × 435 mm
- Weight: 25 kg
- Connections: 1× USB 3.0, 1× Power
- Power supply: 100–240 V AC, 50/60 Hz
- Output data format: PLY, STL
Scope of delivery
Vinyl UXDMains cable
USB-cable
Accessory case with:
3D calibration model
Object holder
Universal plate
multiDie adapter
Triple Tray® impression holder
4-teeth bar (Twin Tray)
Adhesive pads
Data carrier with dental Scan, calibration data
Artikelmerkmale
Manufacturer
Smart Optics
