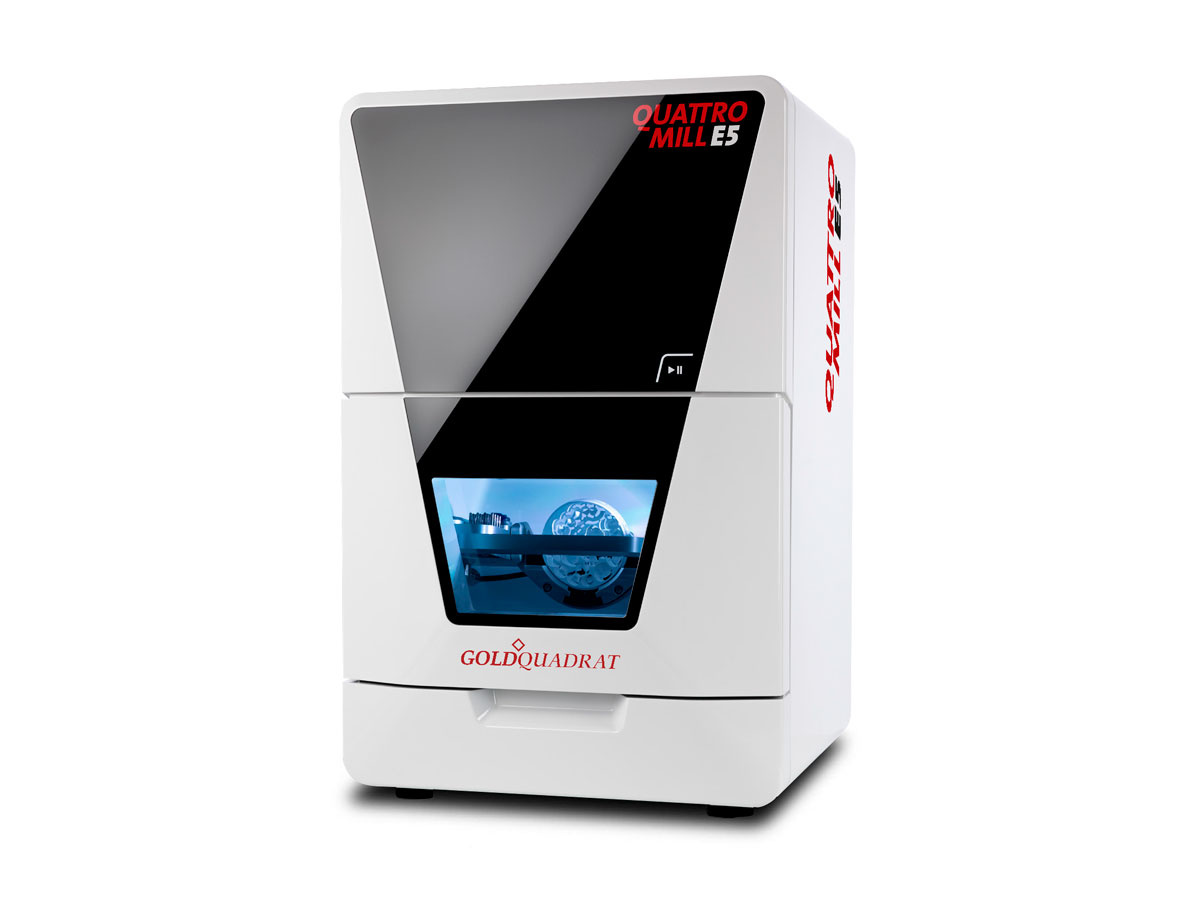

GQ Quattro Mill E5

Add Item to Favorites
Milling system incl. DENTALCAM software
Item No.
40301685 (40301685)
Hersteller Art.-Nr.
249507
23.776,20 €
Price incl. 19% VAT plus Shipping

Delivery on demand

Usually ships in 1 to 3 days
Product description
Die GQ Quattro Mill E5 is the innovative milling machine for digital dental technology in the practise lab and the laboratory. By requiring no compressed air, it allows maximum freedom in the choice of the installation site; and also leads to extremely favourable operating costs... The open system architecture of the E5 makes the entry into the digital production of dental restorations quick and easy, and it fits perfectly into all workflows.

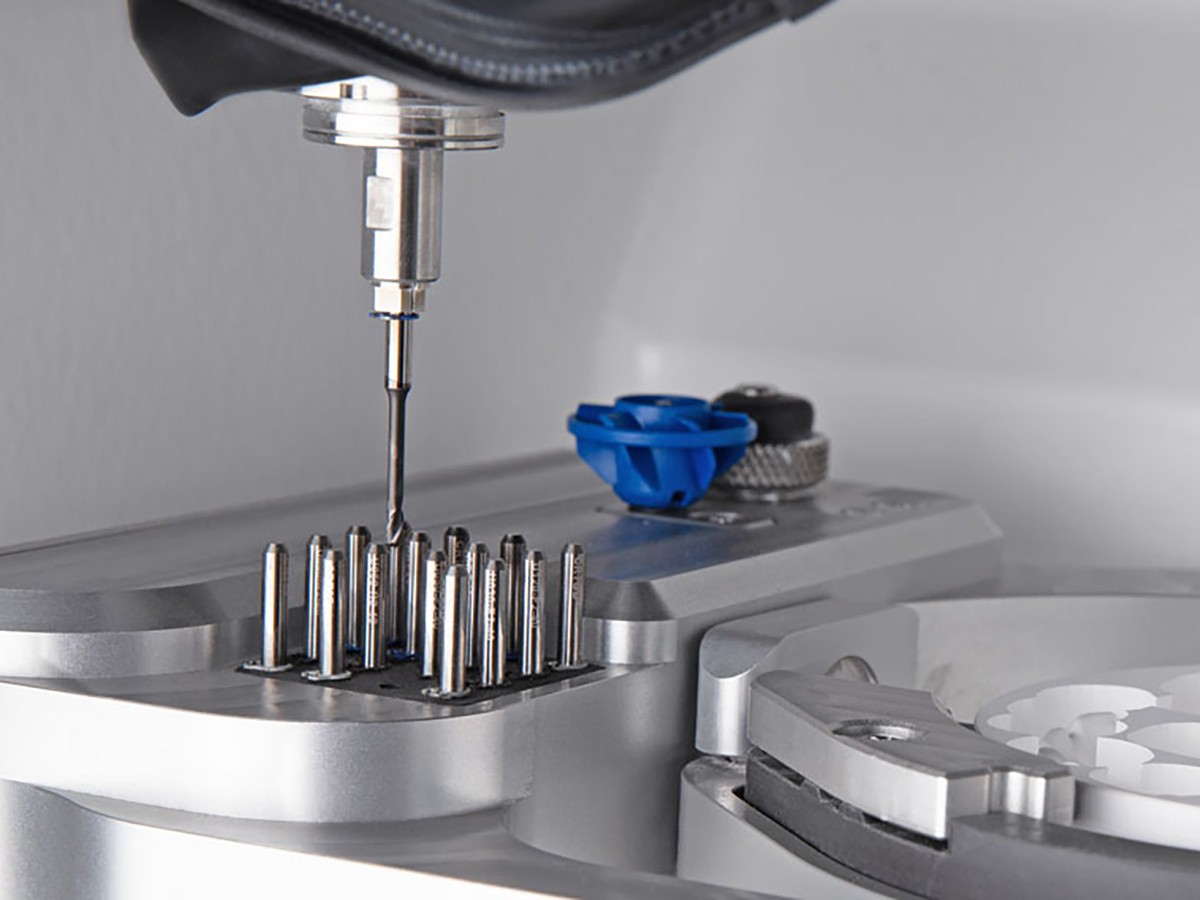

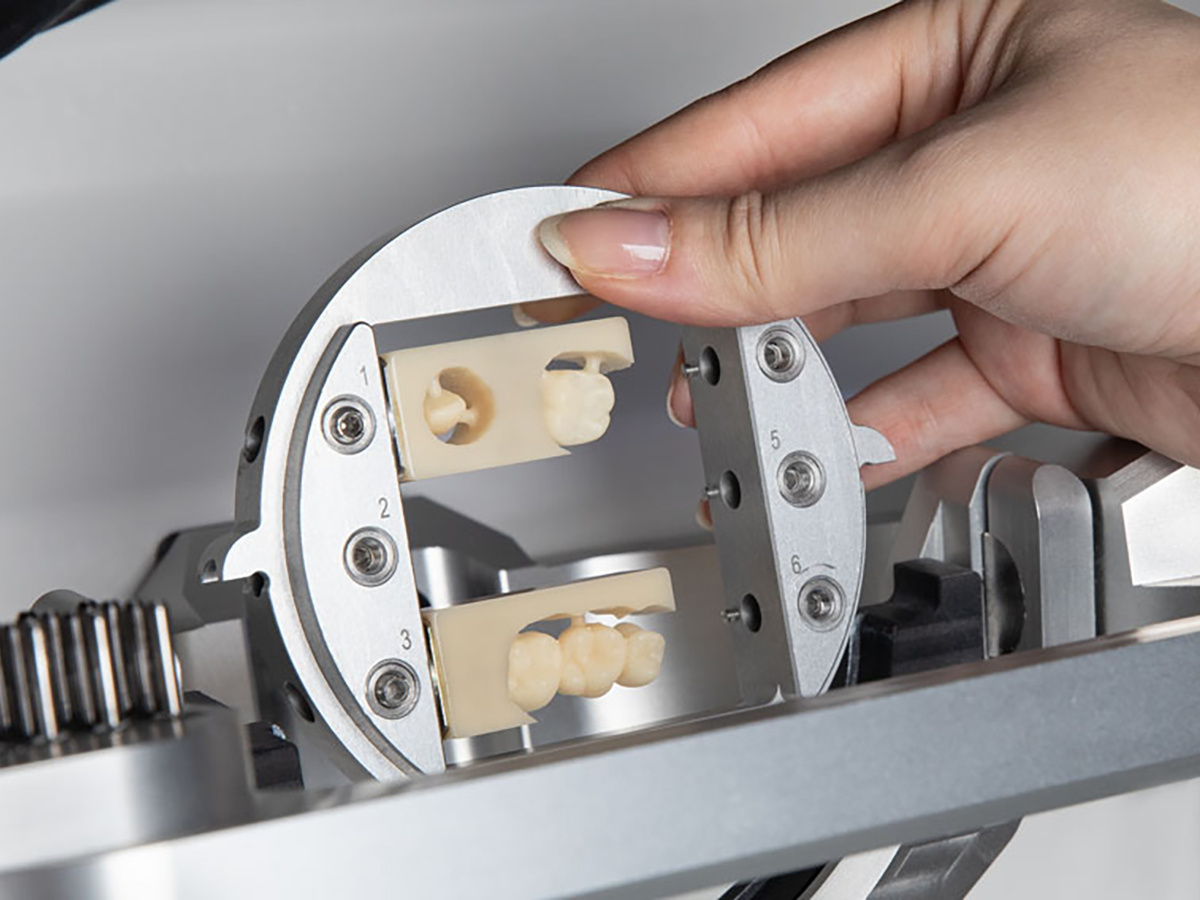

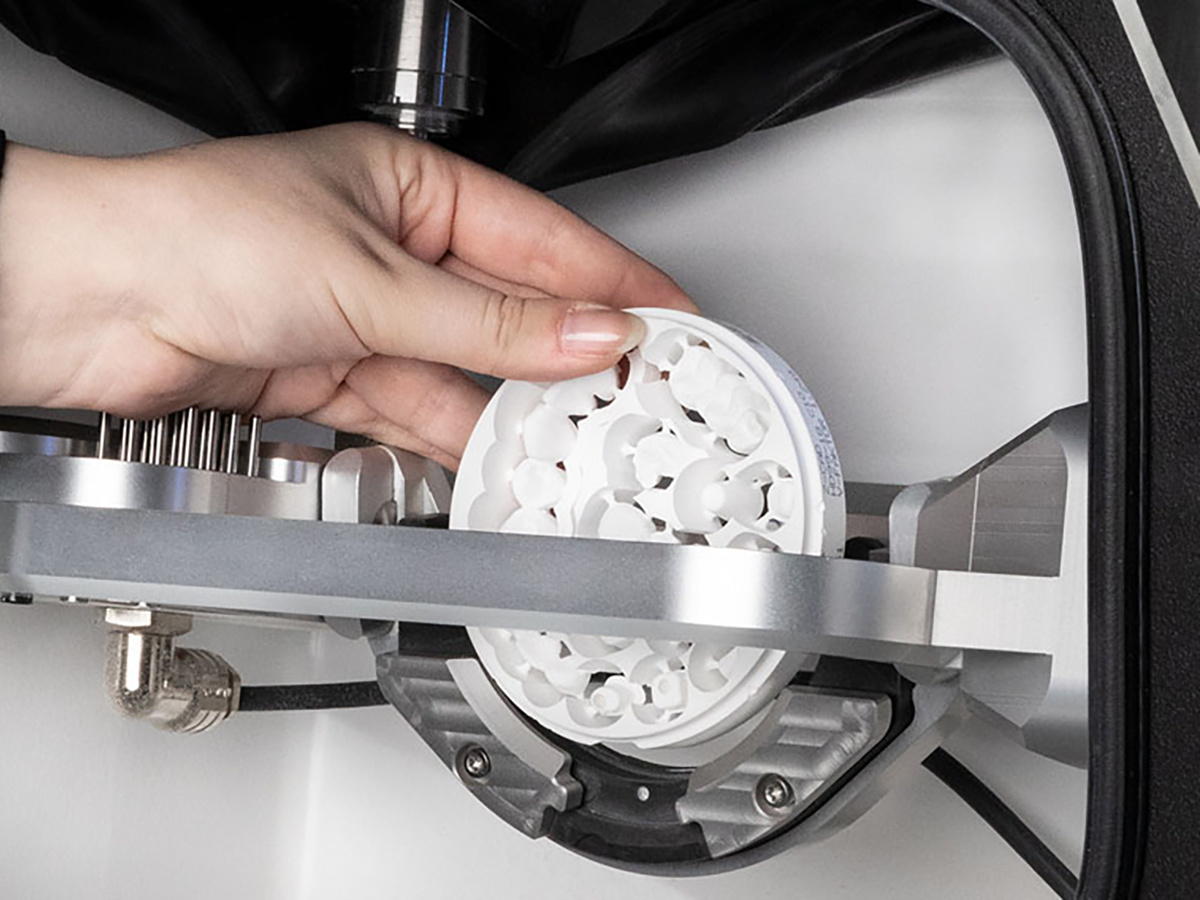

Despite its compact design, the E5 offers a generous working chamber with plenty of space in which to clamp the workpieces and load the automatic tool changer. The automatic tool changer can accommodate 16 standard tools and an AIRTOOL. You can also use the appropriate holder to process up to 6 blocks of different sizes with minimal effort.

The E5 was developed with an optimised weight of only 43 kg and is manufactured with only the highest quality industrial components and delivers first class results.

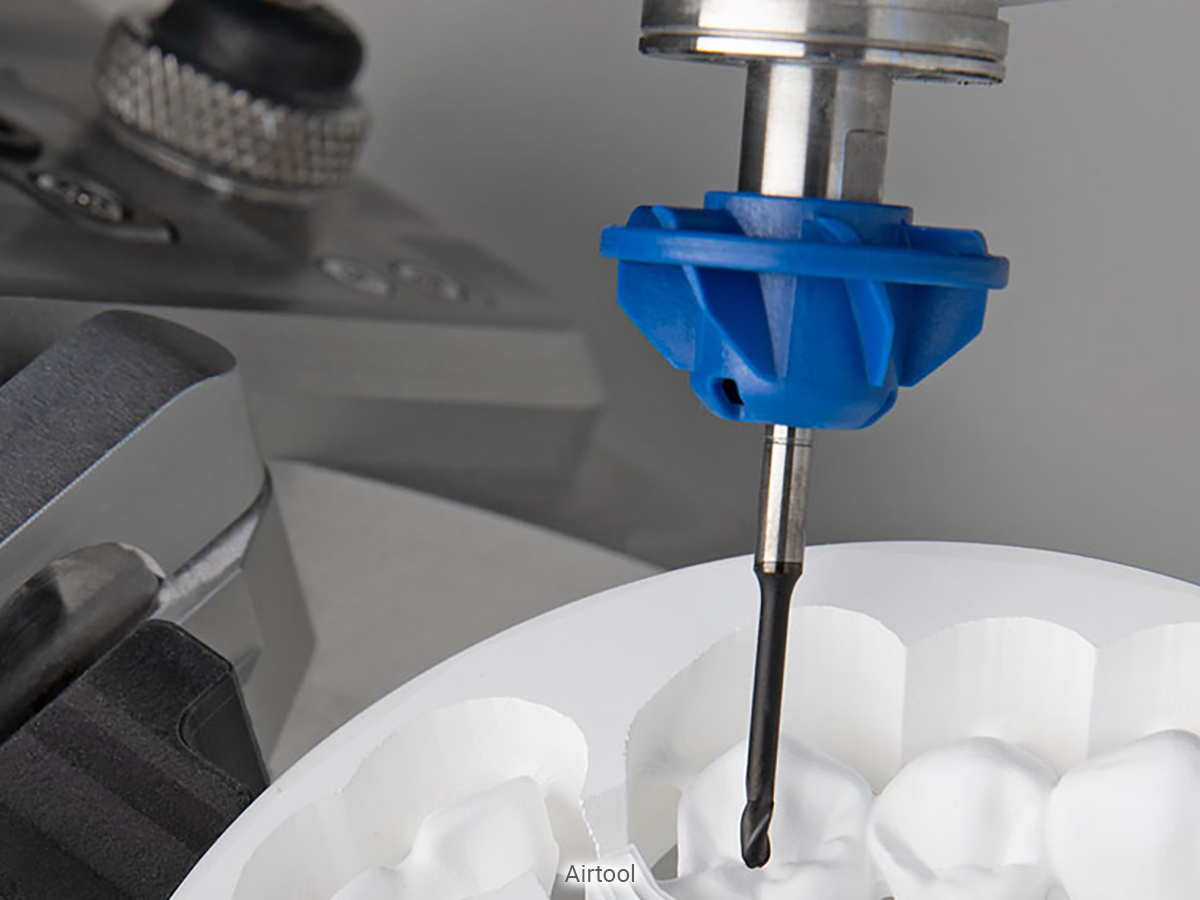

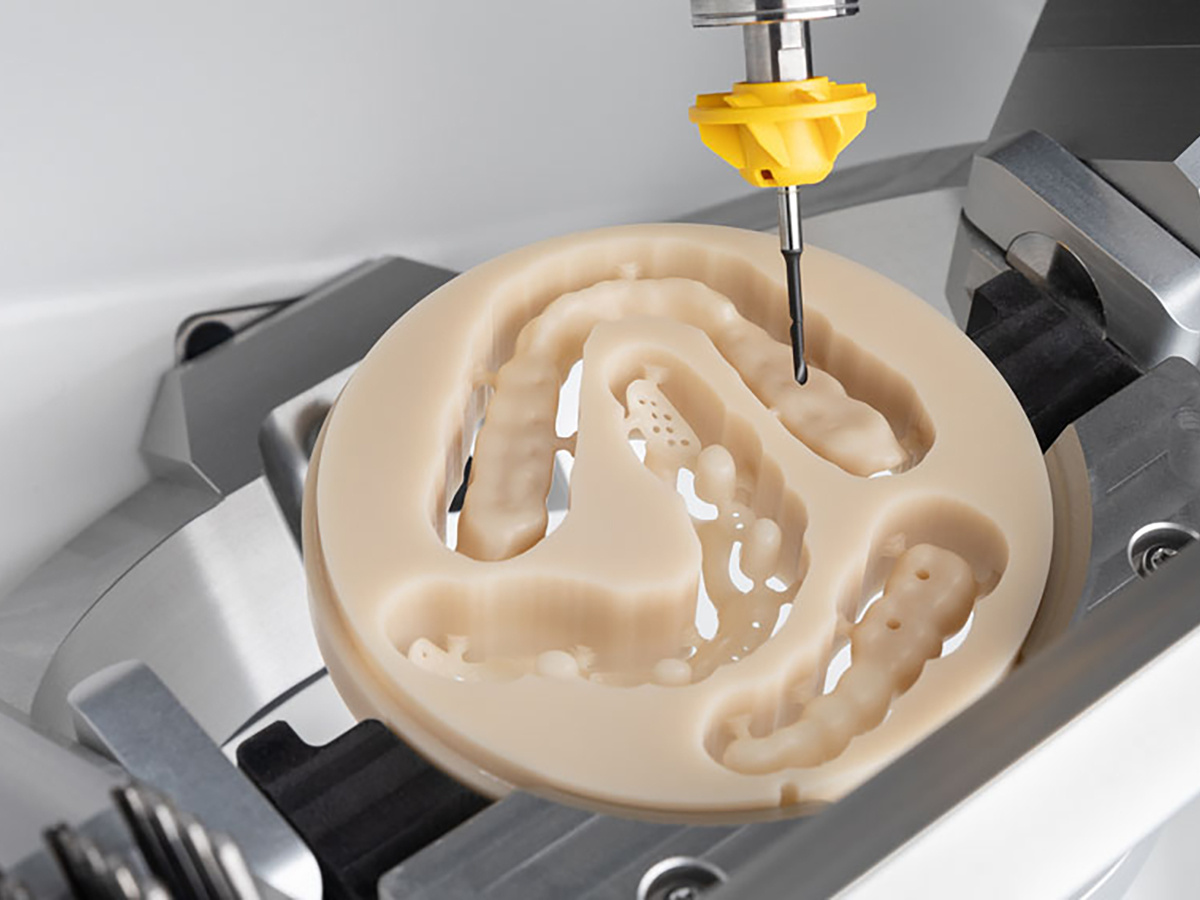

One great innovation of the E5 is that it does not use compressed air: The E5 requires neither an external compressed air connection nor an integrated compressor, which is only possible with our patent-pending AIRTOOL. The AIRTOOL turbine blades use the speed of the high-frequency spindle to generate a powerful air flow, which keeps the workpiece free from dust and chippings. They are removed by vacuum from a dust collector.

The GQ Quattro Mill E5 is very easy to operate thanks to the licence-free DENTALCAM software included in the delivery. This has an open interface to all scanners and materials.


General
  • Fields of application: Dry machining
  • Materials: Composites, plastics/wax, zirconia, CoCr sintered metals
    • Discs, height 10–40 mm, diameter 98.5 mm
    • Blocks up to  40 × 20 × 20 mm (block holder required)
  • Indications:Crowns, bridges, inlays, onlays, veneers, occlusal splints, full dentures, denture frameworks, implant bars, abutments, screw retained crowns, screw retained bridges, surgery guides, primary crowns, secondary crowns, model plates, model tooth dies
  • Holder systems: Holder for 98.5-mm discs (integrated) · holder for 110 mm discs (optional) · block holder (optional) · Ivotion1 accessory kit  (optional)

Basesystem
  • Construction: Machine bed made of solid cast aluminum body
  • Housing: White high-gloss lacquer finish · upward opening lift door to the workroom
  • Number of axes: 5
  • Linear axes X-/Y-/Z-axis: Precision ball screws · motors with resolution < 1 μm · ground precision guides made of high-alloyed steel · repetition accuracy ± 0.003 mm
  • Rotoray axis A-axis: Backlash-free tension shaft gear with highest angular accuracy · rotation angle: 360°, infinite
  • Rotorary axis B-axis: Backlash-free tension shaft gear with highest angular accuracy · rotation angle: ±35°
  • Control unit: Control electronics with continuous path progression and dynamic pre-calculation · hardware-based real-time operating system with standardized instruction set · FPGA-integrated processor · updateable hardware · real-time path and ramp calculation via dedicated hardware engines in the FPGA · four-quadrant control of the motors for particularly smooth running · multiple digital I/Os for controlling the peripherals · integrated inverter for synchronous and asynchronous motors, electronic gate detection · Ethernet and USB interface
  • Lightning: RGB LED lightning with status indication

Spindle
General: High-frequency spindle with electromechanical tool change
Speed: up to 60,000 rpm
Power: Peak power (Pmax): 800 watts · nominal power (S6): 400 watts · continuous power (S1): 300 watts
Bearing: 2-fold hybrid ceramic ball bearing
Collet: for tools wit 3 mm shank diameter and 40 max. 40 mm total lenght

Automation
Tool change: Tool magazine for 16 tools plus one AIRTOOL · length measurement and tool breakage monitoring via precision measuring key · access via front-door, safety-locked

Processing modes
Dry: Compressed air-free operation through use of AIRTOOLs · hose connection for external suction unit on the back of the housing · 24 V switch output for controlling suction units
Technical data
  • Dimensions (B/T/H): ca. 472 x 484 x 734 mm with closed door, ca. 472 x 567 x 734 mm with opened door
  • Footprint (B/T): 387 x 370 mm
  • Weight: ca. 43 kg
  • Extraction system: Extraction filter class M, 2,500 l/min extraction capacity at 200 hPa
  • Power supply: 100–240 volts · 50/60 Hz, 500 watts
  • Collet: For tools with 3 mm shank diameter and max. 40 mm total length

Connection requirements
Compressed air: –
Power supply: 100–240 volts · 50/60 Hz, 500 watts
Extraction system: Extraction filter class M, 2,500 l/min extraction capacity at 200 hPa
Data: 10/100/1000 MBit/s BaseT port (auto-sensing) Ethernet via RJ-45 socket
Scope of delivery
CAM Software
DENTALCAM

Holder systems
  • Holder for 98.5 mm discs (integrated)
  • Holder for 110 mm discs (optional)
  • Block holder (optional)
  • Ivotion accessory kit (optional)

Accessories
  • Spindle service set
  • calibration set incl. stirrup measuring screw
  • tool magazine insert (1 piece)
  • Torx wrench set
  • torque driver 1–5 Nm
  • AIRTOOL for PMMA/wax
  • drill bit (tool positions)
  • cleaning brush and microfiber cloth
  • Administrated Tool Board (ATB) for tool storage
  • power cable
  • Ethernet network cable
  • Instruction manual
